Real Time Systems – Definition from Trenovision

Operating Systems

Operating System acts as a middle man between the user and the computer hardware.

  • Goals of the Operating System
    • Executes user programs and makes problem solving easier
    • Makes computer system convenient to use.
    • Use the hardware in an efficient manner.

Modeling an Operating System

  • Operating System is a resource allocator
    • Manages all resources
    • Decides conflicting requests for efficient and fair resource usage
  • Operating System is a Control Program
    • Controls execution of programs to prevent errors and improver use of the computer.
  • Operating System has a Kernel part that does all operations

Real time Systems

  • Real time systems are systems that need to run continuously and take decisions in a timely manner.
  • Components involved
    • External Sensors and Actuators
    • Embedded Processors
    • Output Peripherals
  • 2 broad categories
    • Open loop Systems
    • Closed loop Systems

Block Diagram of Embedded System

Operating System
Block Diagram of Embedded System



Open loop and Closed loop Systems

  • Open loop Systems

    • Error factor is not taken into account
    • Not stable and output is unreliable
Operating System

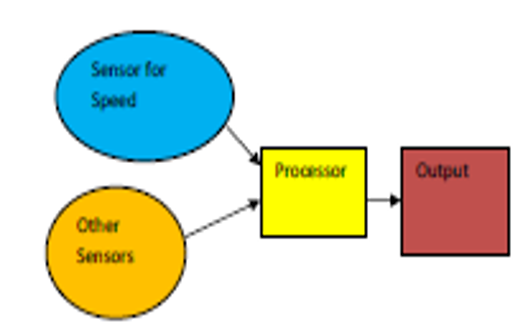

Open Loop System
  • Closed loop Systems

    • Error factor and external environment taken into account
    • More stable and output is accurate and reliable

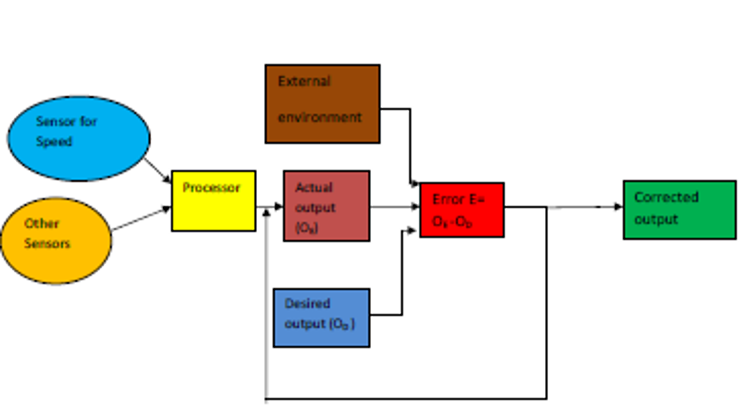

Closed loop Systems
Closed loop Systems



Classification of Real time Systems

  • Failure of a Real time system can bring operations to a standstill
  • Embedded Systems range from day to day applications which include toys, electric toasters, etc
  • 2 broad categories
    • Hard Real Time Systems
    • Soft Real Time Systems

Hard and Soft Real time Systems

  • Hard Real time Systems

    • Failure to meet deadlines lead to catastrophe
    • Example would be an automatic flight control scenario
  • Soft Real Time Systems

    • Failure to meet deadlines would not cause everlasting damages
    • Examples could range from a video game to washing machines, etc

Quick Note

  • Real time systems are timely
  • Systems can be classified broadly
    • Open loop
    • Closed loop
  • Based on deadlines systems are
    • Hard real time
    • Soft real time
